Lorem ipsum dolor sit amet consectetur adipisicing elit. Minima quam aperiam ullam.
(Contact: +8801792223444 for price)
Product Description
Specification
|
Rated power |
100W, 200W, 300W, 400W, 500W, 800W, 1000W |
||
|
Max Power |
110W, 220W,330W,440W,550W, 880W, 1100W |
||
|
Rated Voltage |
12/24V |
||
|
Start-up Wind Speed |
2m/s |
||
|
Rated Wind Speed |
11.5m/s |
||
|
Survival wind speed |
45m/s |
||
|
Wind wheel diameter |
0.9m/s |
||
|
Number of blades |
5 pieces |
||
|
Blades material |
Nylon fiber |
||
|
Generator |
Three phase ac permanent magnet generator/Maglev generators |
||
|
Control System |
electric eddy brake |
||
|
Yaw Mode |
The wind Angle automatically |
||
|
Lubrication mode |
self-lubricating |
||
|
Tower form |
Tower |
||
|
Working temperature |
-40℃～80℃ |
||

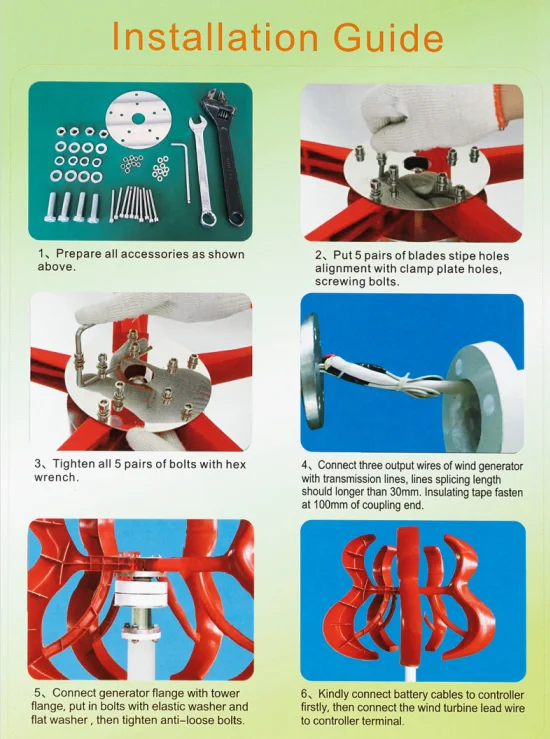

Installation Instructions

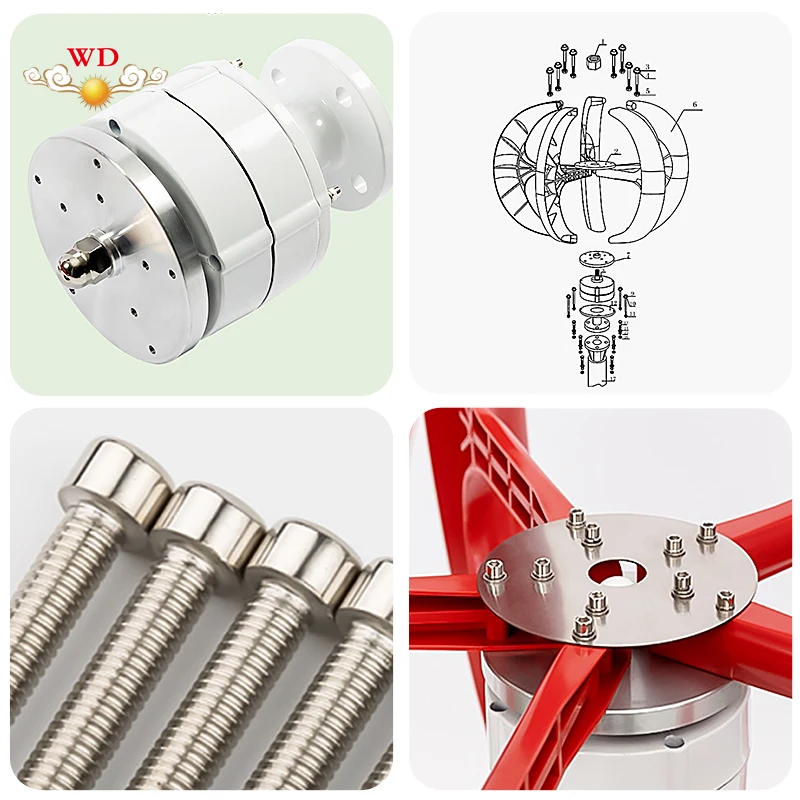

Details Images

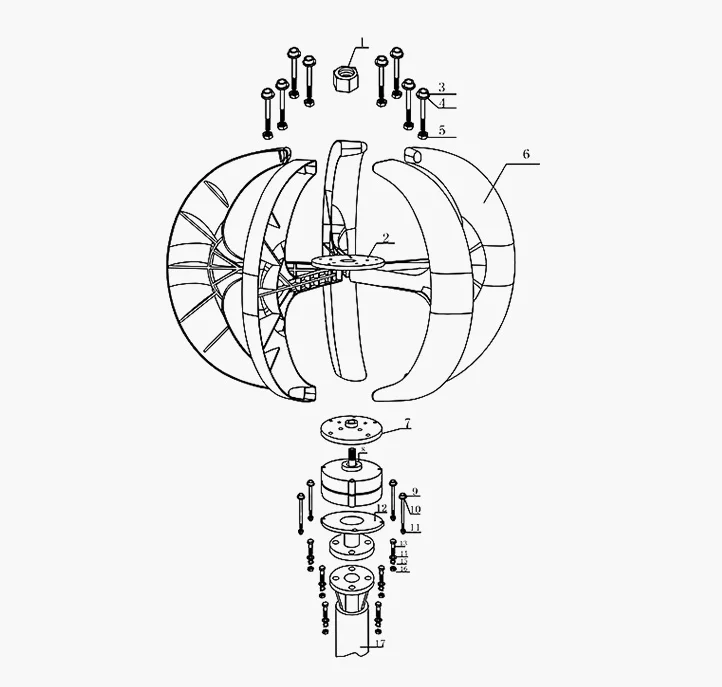

Components
1.Anti-loose Nuts
2.Wind wheel Pressure Plate
3.Pressure Plate Bolts
4.Gasket
5.Anti-loose Nuts
6.Blades
7.Wind Wheels Hub.
8.Motor Host
9.Bolts
10.Gasket
11.Nuts
12.Flange Base
13.Bolts
14.Gasket
15.Spring Washers
16. Nuts
17.Pole
Packing & Delivery

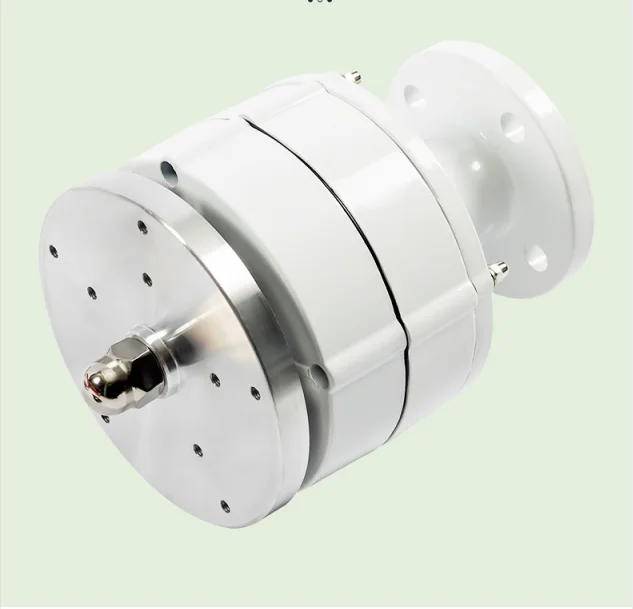

Generator
Three phase ac permanent magnet generator/Maglev generators
Permanent magnet synchronous generator, wind energy to electric energy higher efficiency, lower loss, self-adjust the direction with the wind. The aluminum alloy shell is light in weight and has strong stability.
Working Temperature.

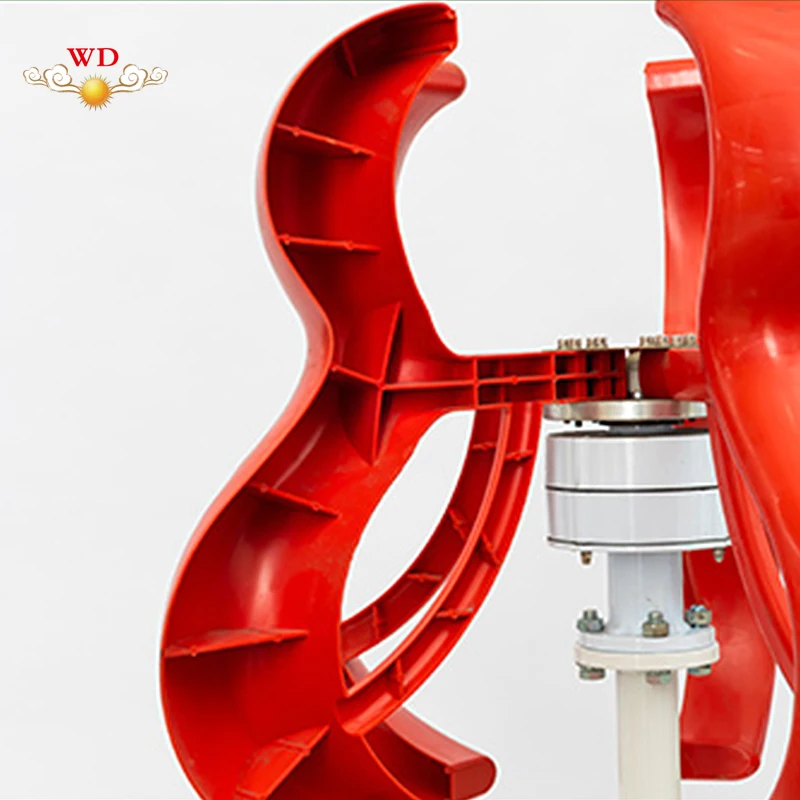

Nylon fiber, Normal operation at -40--80 degrees, Don't worry about the blade freezing crack caused by too low temperature or the deformation of the blade due to too high temperature
Low running vibration and ultra-low silence
Low starting wind speed, small size, beautiful appearance, low running vibration, ultra-low silence, intelligent microprocessor control, effective regulation of current and voltage.

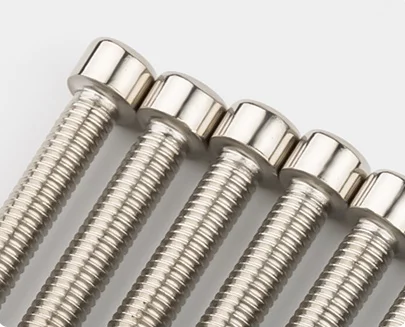

316 stainless steel Anti-loose Bolts
316 stainless steel Anti-loose Bolts Corrosion resistant and longer service life..

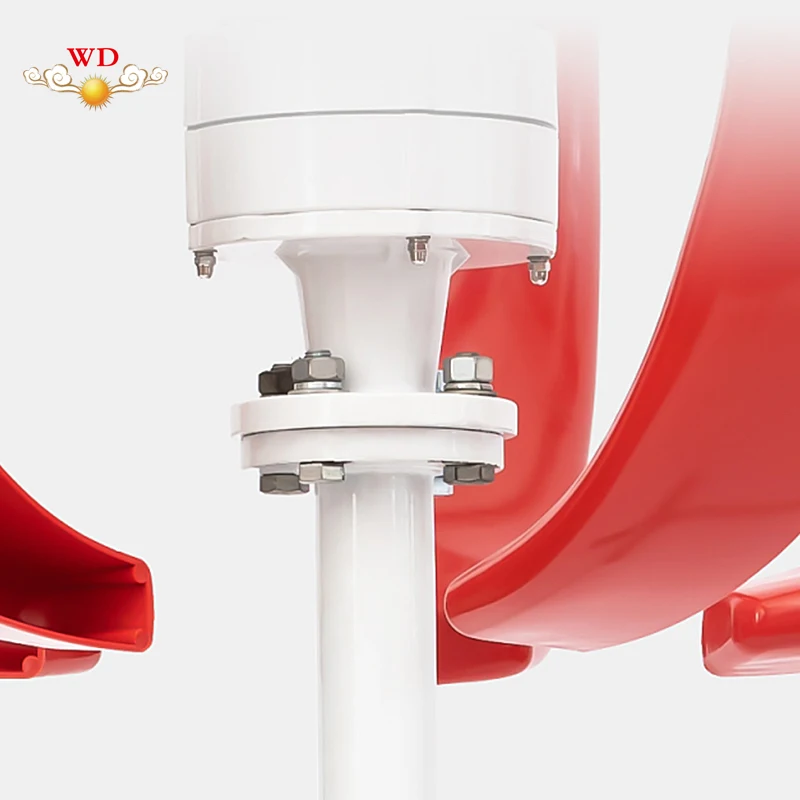

Flange
It adopts beautiful and user-friendly flange connection installation design, which is more firm and safe..
