Product descriptions
Products Description
.This precision mini lathe is designed to perform various types of metal turning.With 10 types inch threads 10-44 T.P.I. and 8 types metric threads 0.5-2.5mm ,This mini lathe is ideal for use in labs, workshops,engineering and educational settings.By adjusting the speed switch can control the spindle speed 0 to 2500RPM.Automatic feeding,infinitely variable,professional tool post.750w power,400mm processing distance,DIY processing of metal,wood.
|
Type number |
YS-2140 |
|
Capacities |
|
|
Swing over Bed |
210mm |
|
Swing over Cross Side |
110mm |
|
Height of spindle center |
105mm |
|
Distance Between Centers |
400mm |
|
Width of Bed |
100mm |
|
Headstock |
|
|
Spindler Bore |
38mm |
|
Spindle Taper |
MT5 |
|
Chuck Diameter |
125mm |
|
Number of Spindle Speeds |
2-Variable |
|
Range of Spindle Speeds |
0-1250, 100-2500 RPM |
|
Feeding and Threading |
|
|
Number of Metric Threads |
8 |
|
Range of Metric Threads |
0.5-2.5mm |
|
Number of lmperial Threads |
10 |
|
Range of Imperial Threads |
10-44T.P.I |
|
Range of Longitudinal Feed |
0.1-0.20mm/r |
|
Lead screw |
Φ16-1.5mm |
|
Compound and Carriage |
|
|
Tool Post Type |
4way |
|
Maximum Compound Slide Travel |
80mm |
|
Maximum Cross Slide Travel |
80mm |
|
Maximum Carriage Travel |
370mm |
|
tail stock |
|
|
Tail Stock Spindle Travel |
50mm |
|
Taper in Tail stock Spindle |
MT2 |
|
Miscellaneous |
|
|
Main Motor |
110V~60Hz/220-240V~50Hz/ brushed 750W, |
|

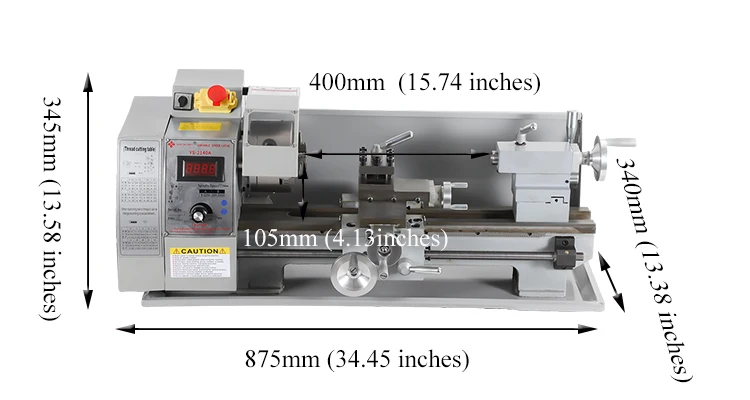

Length, Width and Height |
875x340x345(mm) |
|
Product Weight |
N.W:58.2Kg;GW:72.9Kg |
|
Package Size |
940*490*510mm |
