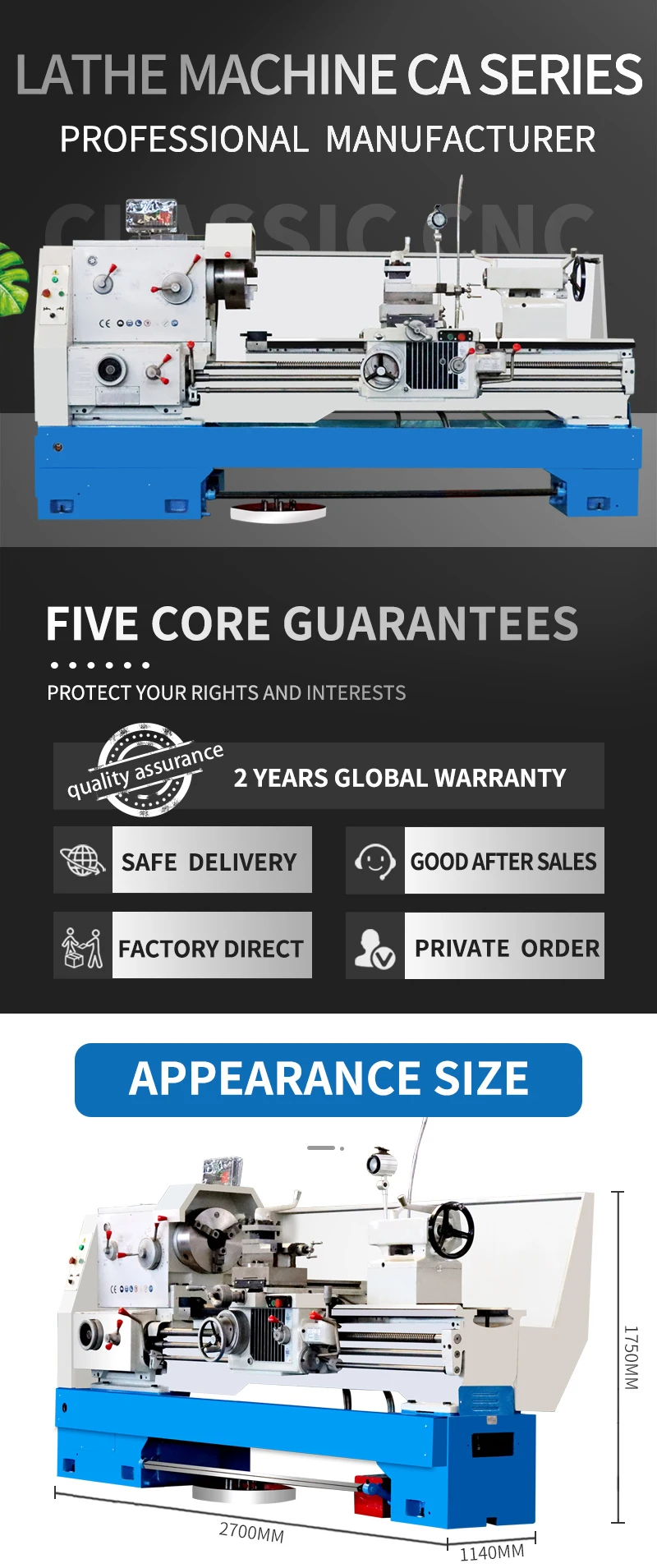

Product Description

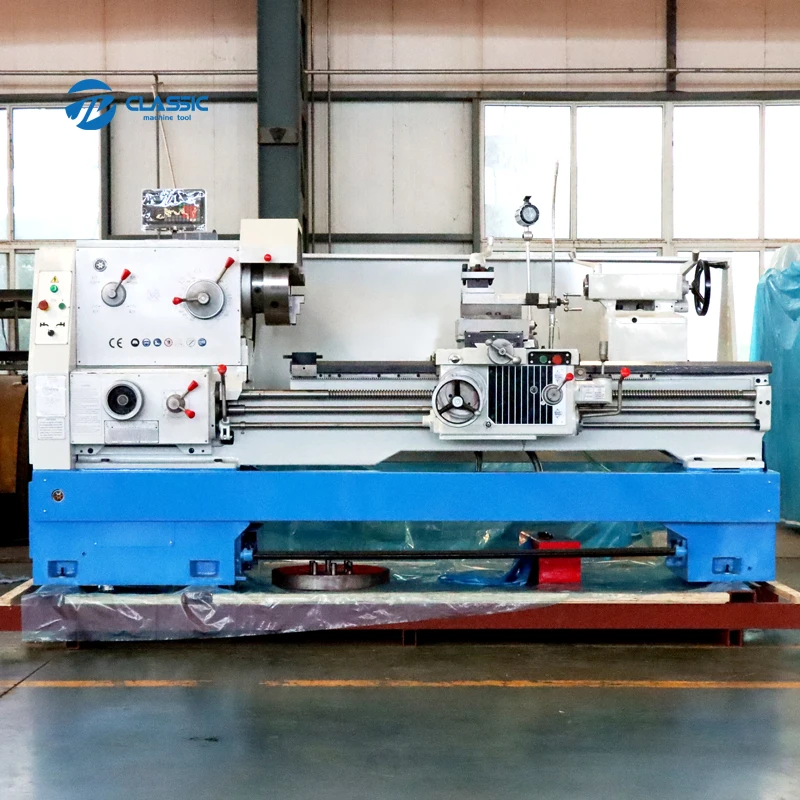

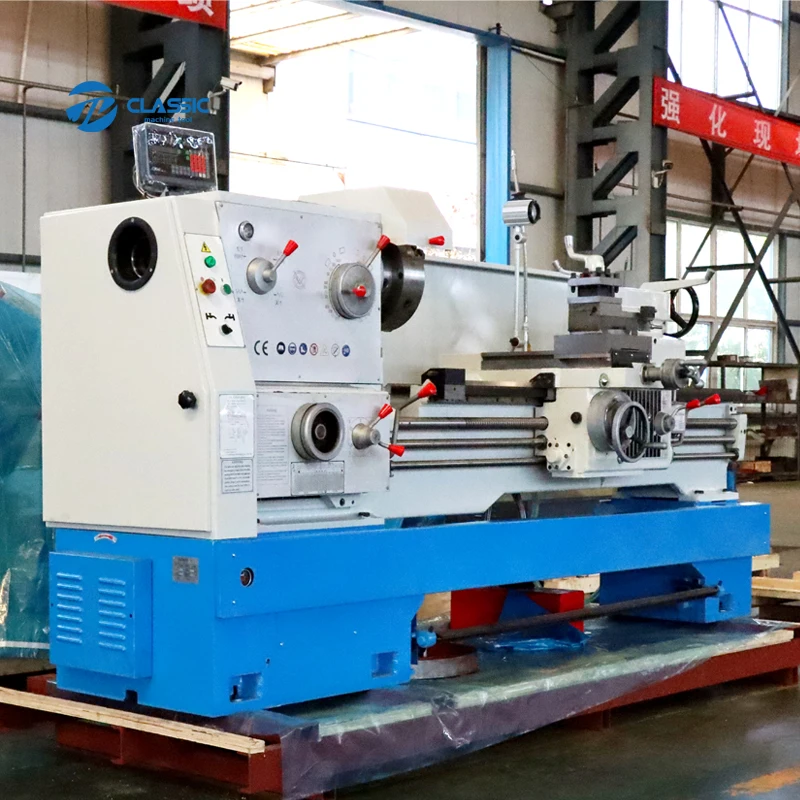

Application:
1.CA series ordinary horizontal lathe is used to turning internal and external cylindrical surface, conical surface, and other
rotating surface, turning various metric and inch, modulus and pitch thread, and the pitch diameter of the thread and pull the drilling and oil tank etc., is general very strong horizontal lathe, Widely applicable batch processing of various shaft and disc parts.
2.The series lathe bed width in general lathe, 400mm rail width has higher stiffness, rail surface by intermediate frequency
quenching, wear-resistant durable..
3.Handy machine operator concentration, slide plate is provided with a quick moving mechanism. Using single handle
operation,humanization.
4 The rigidity of the machine tool structure and the transmission stiffness are higher than the general lathe, the power
utilization rate is high, which is suitable for the strong cutting.
5.Before leaving the machine tool factory, the machine tool is tested strictly according to the inspection procedure, and the
machine tool is tested to ensure that the machine tool has good stability and reliability.
Product main technical specifications:
|
Type |
CA6140 |
CA6150 |
CA6161 |
CA6166 |
CA6180 |
|
Max. swing over bed |
400mm |
500mm |
610mm |
660mm |
800mm |
|
Max. swing over carriage |
210mm |
300mm |
370mm |
400mm |
540mm |
|
Max. swing in gap |
630mm |
720mm |
830mm |
880mm |
1020mm |
|
Max. effective length in gap |
210mm |
||||
|
Max. length of workpiece |
750/1000/1500/2000/2200/3000/4000mm |
||||
|
Width of bed |
400mm |
||||
|
Section of turning tool |
25×25 mm |
||||
|
Main spindle motor |
7.5kw(10HP) |
||||
|
Spindle |
|||||
|
Spindle speed |
16--1400rpm(24step) |
||||
|
Spindle bore |
52mm (80mm),(105mm) |
||||
|
Spindle taper |
No.6(MT6)(Φ90 1:20)[Φ113:20] |
||||
|
Feed |
|||||
|
NO. of feed |
(64 kinds)(for each) |
||||
|
Range of metric threads |
(1-192mm) (44 kinds) |
||||
|
Range of inch threads |
(1-24tpi) (21kinds) |
||||
|
Range of module threads |
0.25-48 (module 39 kinds) |
||||
|
Range of diametral pitch threads |
1-96DP (37 kinds) |
||||
|
Tailstock |
|||||
|
Max. tailstock spindle travel |
150mm |
||||
|
Tailstock spindle diameter |
75mm |
||||
|
Taper of tailstock spindle centre hole |
1-96DP (37 kinds) |
||||
|
Packing dimensions (L*W*H) |
|||||
|
Overall dimensions for 750mm |
2440×1140×1750mm |
||||
|
Overall dimensions for 1000mm |
2700×1140×1750mm |
||||
|
Overall dimensions for 1500mm |
3200×1140×1750mm |
||||
|
Overall dimensions for 2000mm |
3700×1140×1750mm |
||||
|
Overall dimensions for 2200mm |
4030×1140×1750mm |
||||
|
Overall dimensions for 3000mm |
4800×1140×1750mm |
||||
|
Overall dimensions for 4000mm |
5680×1140×1750mm |
||||
|
Weight (kg) |
|||||
|
Overall dimensions for 750mm |
2100 |
2170 |
2300 |
2400 |
2520 |
|
Overall dimensions for 1000mm |
2200 |
2260 |
2380 |
2580 |
2720 |
|
Overall dimensions for 1500mm |
2380 |
2450 |
2577 |
2830 |
3000 |
|
Overall dimensions for 2000mm |
2750 |
2800 |
3000 |
3050 |
3300 |
|
Overall dimensions for 2200mm |
2800 |
3000 |
3150 |
3400 |
3500 |
|
Overall dimensions for 3000mm |
3300 |
3500 |
3600 |
4000 |
4220 |
|
Overall dimensions for 4000mm |
3500 |
3800 |
3950 |
4600 |
4900 |
