Lorem ipsum dolor sit amet consectetur adipisicing elit. Minima quam aperiam ullam.
(Contact: +8801792223444 for price)
Product Description
Specification

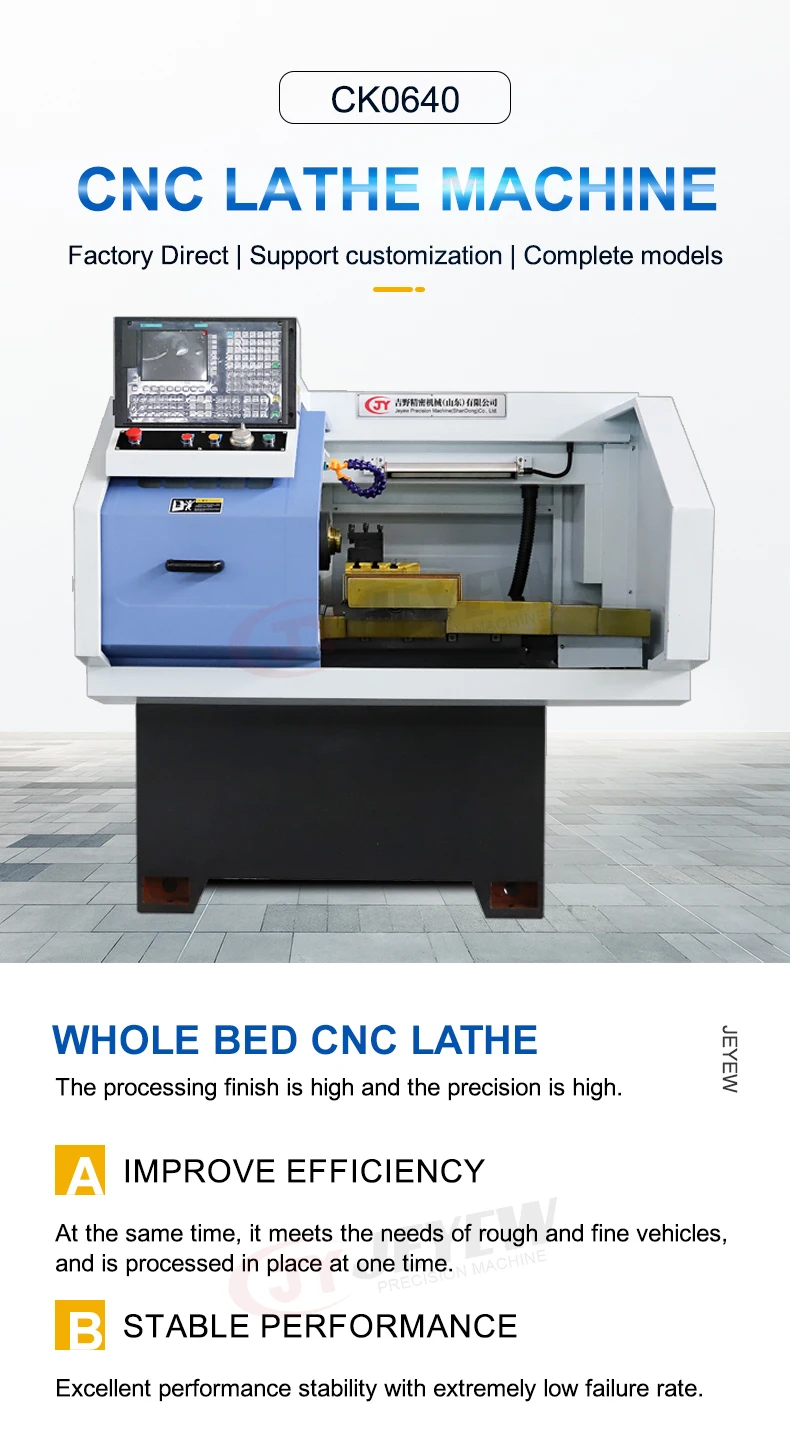

CK0640 CNC lathe machine is made of high-rigidity cast iron with an integral casting structure, which is 30% more rigid and stable than the integral bed foot structure. It is molded with resin sand and has been treated with aging. High-precision and high-strength ball screws are used for feed in X and Z directions;high-efficiency arranging tools are used as standard, and the tool change efficiency is high. Four-station CNC vertical electric tool holders are optional, with high precision and stable rotation , No lifting action is simple and other features.
|
Items |
Model |
Unit |
CK0640 |
|
Capability |
Max swing over bed |
mm |
320 |
|
Max swing over cross slide |
mm |
100 |
|
|
X axis travel |
mm |
750 |
|
|
Guideway width |
mm |
260 |
|
|
Max length of workpiece |
mm |
750 |
|
|
Maximum working length |
mm |
500 |
|
|
Spindle |
Spindle bore |
mm |
49 |
|
Spindle inner hole taper |
(°) |
21 |
|
|
Thread of spindle drawpipe |
/ |
M48*1.5 |
|
|
Spindle speed |
rpm |
100-3000 |
|
|
The clamping mode of the workpiece |
mm |
Pneumatic collet/manual chuck |
|
|
Main drive motor |
kw |
3.7 |
|
|
Frequency changer |
kw |
3.7 |
|
|
X/Z axis servo motor |
Nm |
4/6 |
|
|
Surface roughness |
/ |
Ra1.6 |
|
|
Surface accuracy |
/ |
IT6-IT7 |
|
|
Tools type |
/ |
Row of knives(Optional 4 station turret) |
|
|
Guide bar size |
mm |
20*20 |
|
|
Package |
Machine weight |
kg |
1600 |
|
Machine size(length*width*height) |
mm |
1680*1470*1550 |
|
Standard Accessories |
Optional Accessories |
|
Solid chuck |
Customer requirements |
|
Iron balance pad |
|
|
Gang type tool holder |
